ONYX 32 Microtechnics & ONYX 32 Hot Gas

The ONYX 32 offers the highest degree of automation out of the ONYX series. Between loading and unloading of the substrates and component feeders the process is executed fully automated. The platform can be equipped for all variations of automated hot gas rework processes or positioning and dispensing applications.

Process Variety bsolute and relative placement according to CAD placement data, component handling, dipping, stamping, fluxing, dispensing, odd shape recognition, inspection, height measurement, soldering, heating, curing, cooling

Absolute and relative placement according to CAD placement data, component handling, dipping, stamping, fluxing, dispensing, odd shape recognition, inspection, height measurement, soldering, heating, curing, cooling

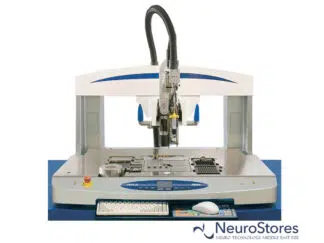

Applications of ONYX 32 Microtechnics

For use in laboratories, prototyping, small and medium series production. Customer specific applications and options can be realized based on the specifications and the commitments by Zevac about the process ability upon quotation. The integration of new modules can be realized in short time with the flexible software VisualMachines TM.

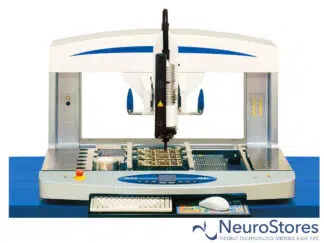

Applications of ONYX 32 Hot Gas

For fully automated rework processes of SMD components, shieldings and connectors. Desoldering, site cleaning, fluxing, placement and soldering is done without operator intervention.
